Slab pre-pour inspection in Manor Lakes

Stage2 of 7

When to bookSteel tied and formwork up, the day before the pour

Time on siteAbout 1 hour on site

Inspected againstAS 2870, AS 3600, NCC Part 3.2, the engineer's slab design and the soil report

What is included in a Manor Lakes slab pre-pour inspection

Vapour barrier running under every beam to ground level
Laps taped and punctures sealed
Bar chairs at the spacing that holds cover
Mesh tied up where it sags
25 mm clear of service penetrations
Trimmer bars wherever the top mesh is cut
Extra bars the engineer specified, such as at showers
Edge and internal beam widths
Pod spacing and spacers
Drainage pipes capped and undamaged
Hot water service pad membrane and isolation strip
Formwork line, bracing and set-down for wet areas
Termite collars at penetrations where specified

Why it matters here

Slab pre-pour inspections on Manor Lakes builds

On one Manor Lakes slab in August 2025 we recorded mesh touching service pipes, trimmer bars missing at cut mesh, an extra shower recess bar left out and a hot water service pad with no membrane or isolation strip. That is a normal list for a busy site, and every item was cheap to fix with the steel fixer still there. The next morning it would have been under concrete.

What we find at this stage in Manor Lakes

Mesh in contact with service pipes
Trimmer bars missing where mesh was cut
Engineer's extra bars left out
Barrier stopping short of the edge beams
Hot water service pad without membrane

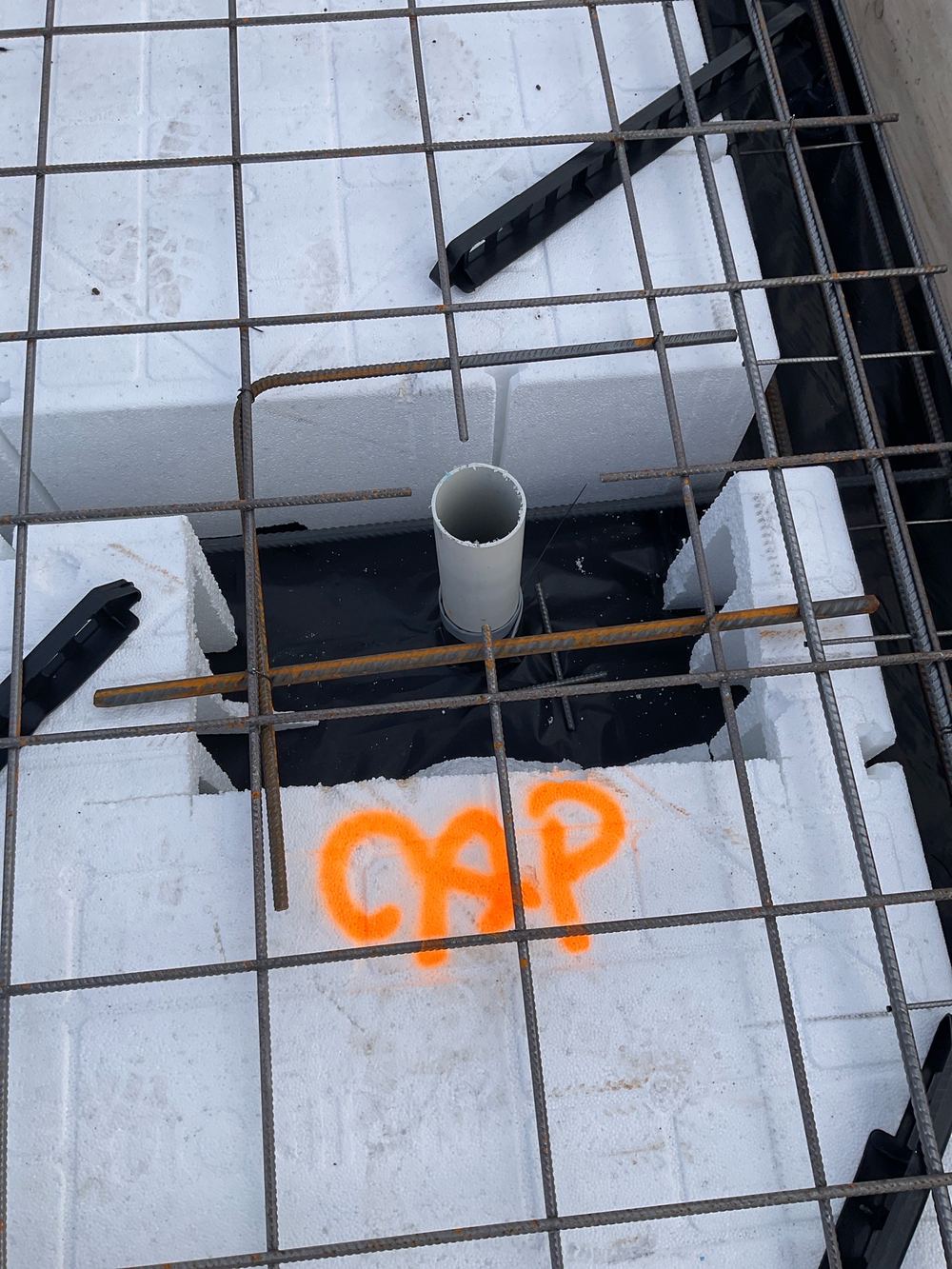

Drainage pipes left open, so rubble can fall in before the pour, found during a slab pre-pour inspection in Manor Lakes — Drainage pipes left open, so rubble can fall in before the pour

Sample findings

Sample defects found during our slab pre-pour inspections in Manor Lakes

Annotated findings from Slab pre-pour inspections.

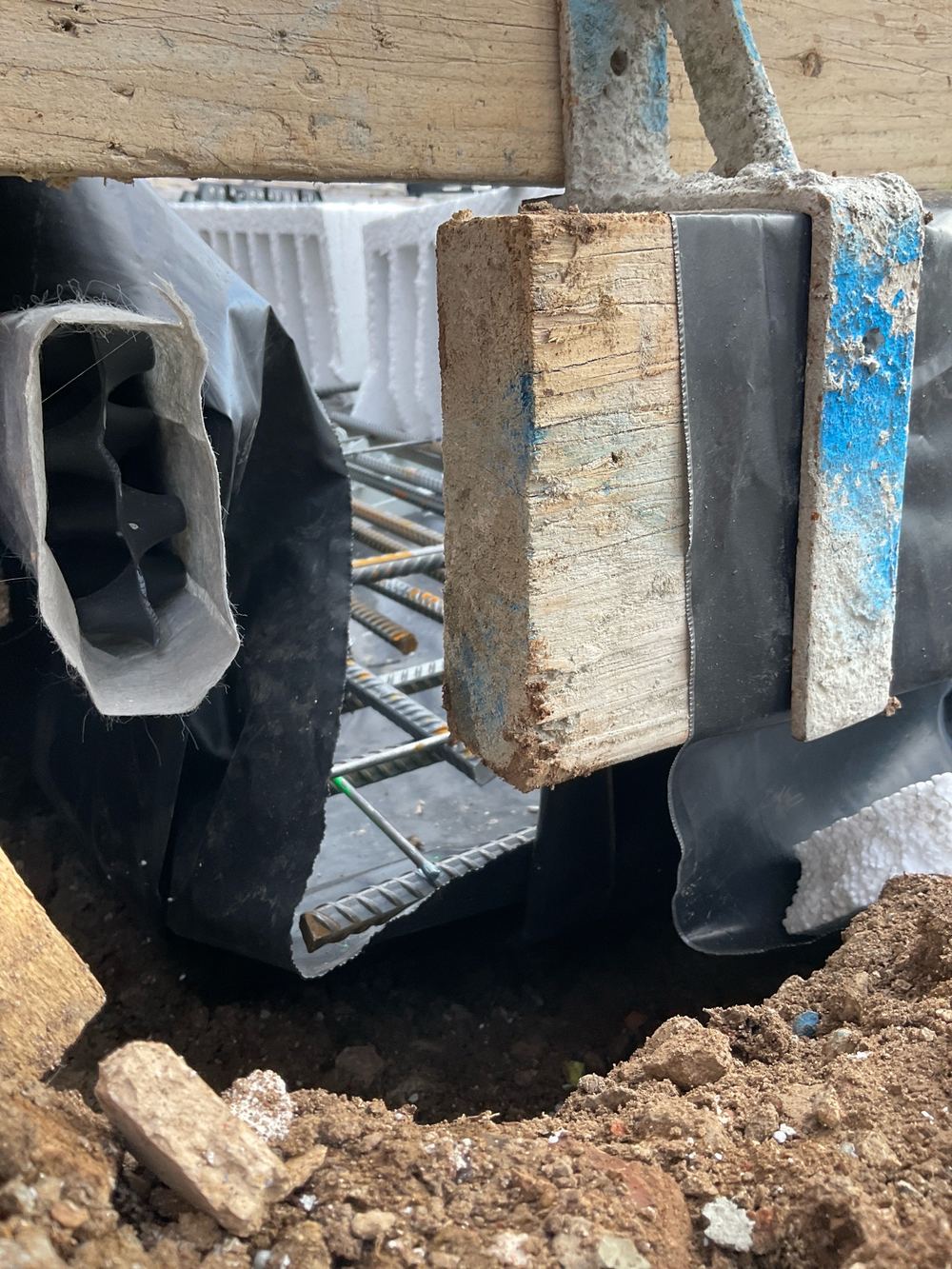

Vapour barrier draped over the reinforcement instead of lying beneath it, found during a slab pre-pour inspection in Manor Lakes — Vapour barrier draped over the reinforcement instead of lying beneath it

No damp proof membrane under the small hot water service slab, found during a slab pre-pour inspection in Manor Lakes — No damp proof membrane under the small hot water service slab

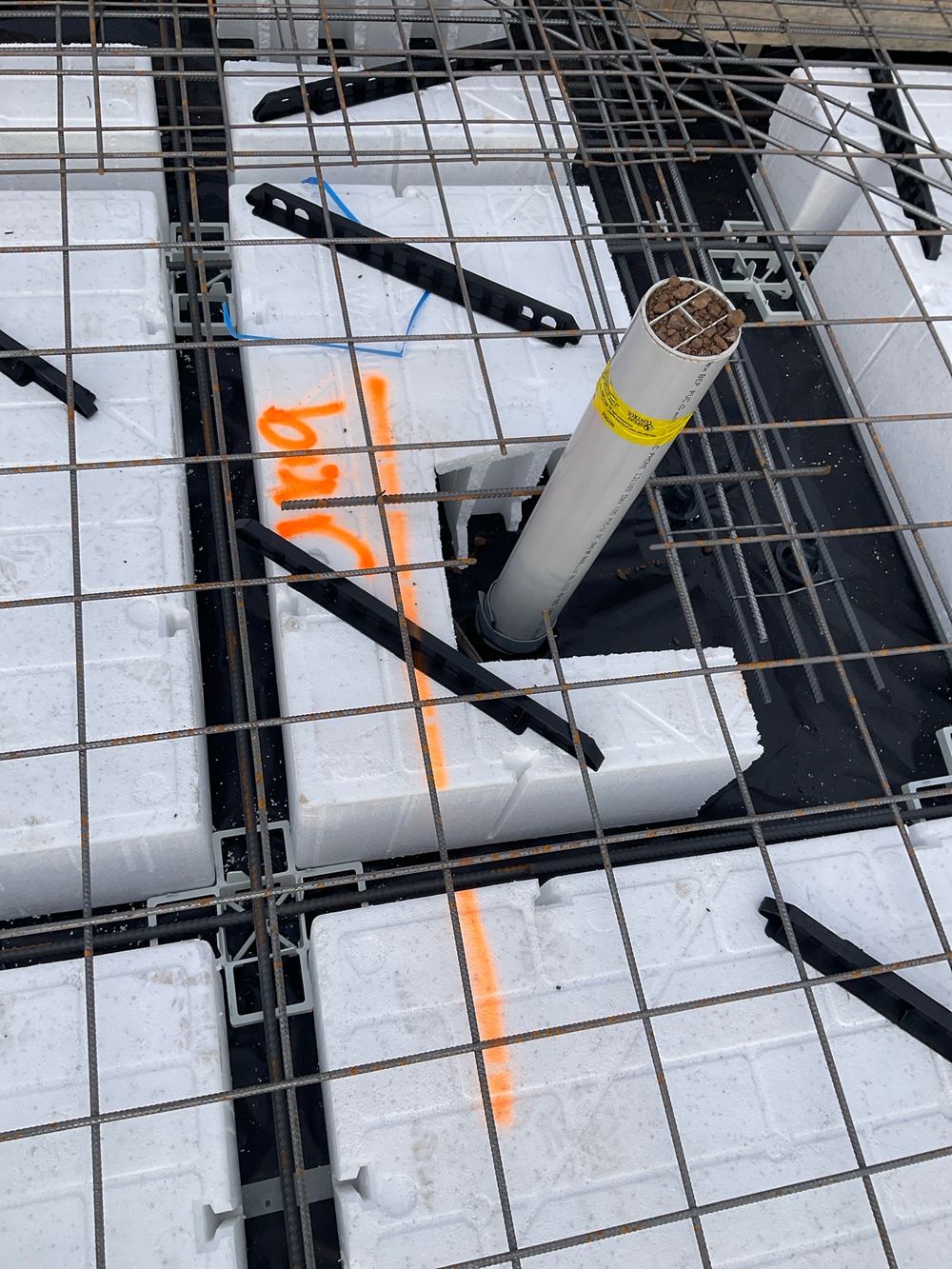

Trimmer bars missing around a penetration where the top mesh had been cut, found during a slab pre-pour inspection in Manor Lakes — Trimmer bars missing around a penetration where the top mesh had been cut

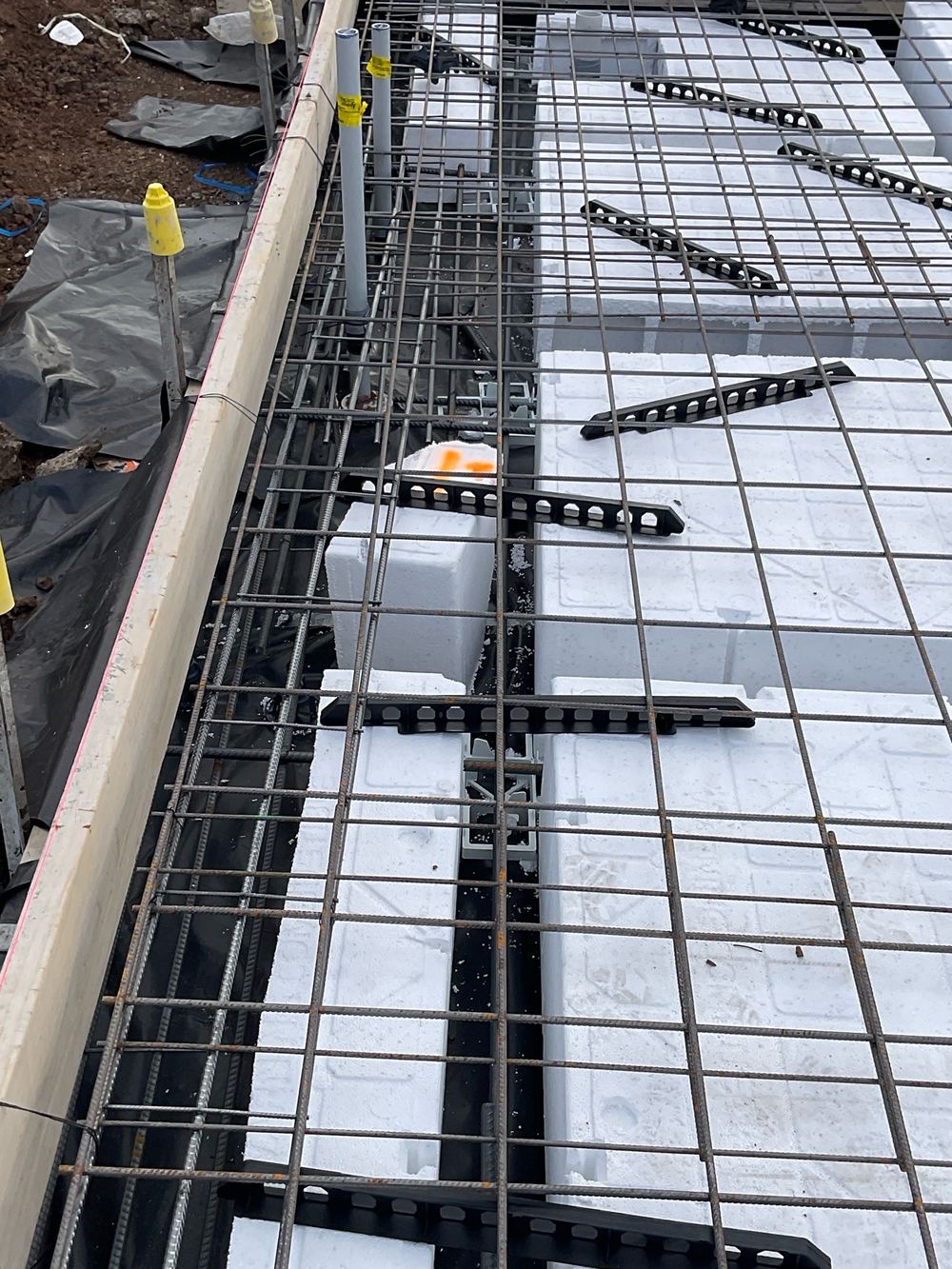

Beam narrower than the plans where pods had shifted without spacers, found during a slab pre-pour inspection in Manor Lakes — Beam narrower than the plans where pods had shifted without spacers

The other stages of a Manor Lakes build

All construction stage inspections in Manor Lakes →

Guides

Construction stage guides for Manor Lakes

19 January 2026 · 7 min read

When upstairs walls miss the floor below

Strongbacks, shear blocks and floor trusses on double storey Manor Lakes frames.

23 February 2026 · 5 min read

No sarking under the metal roof

What sarking does, why it goes missing and why lock-up is when to catch it.

5 January 2026 · 4 min read

The small slab nobody looks at

Hot water service pads, and the membrane and isolation strip they need.

All guides →

FAQ

Slab pre-pour inspections in Manor Lakes: common questions

Why check something as small as the hot water service pad?

Because it is a slab too. Without a membrane or the isolation strip the engineer specified, damp and movement show up years later at a fitting that is expensive to move.

Does the building surveyor not check the slab?

The surveyor's mandatory inspection serves the permit. Ours is a detailed defect inspection for you, and it looks at things like clearance to pipes and bar laps that are easy to pass by.

What if the pour date changes?

We move with it. Tell us the new date as soon as you know and there is no charge for rebooking.

Can you check the slab after it is poured?

Only the surface and edges. Everything beneath, including the membrane and the steel cover, can only be seen before the pour.

What should I send you?

The slab engineering and the plumbing set-out if you have it, so bar positions and penetrations are compared with what was designed.

What is not included?

Concrete strength testing, soil testing, plumbing pressure tests and engineering certification.
